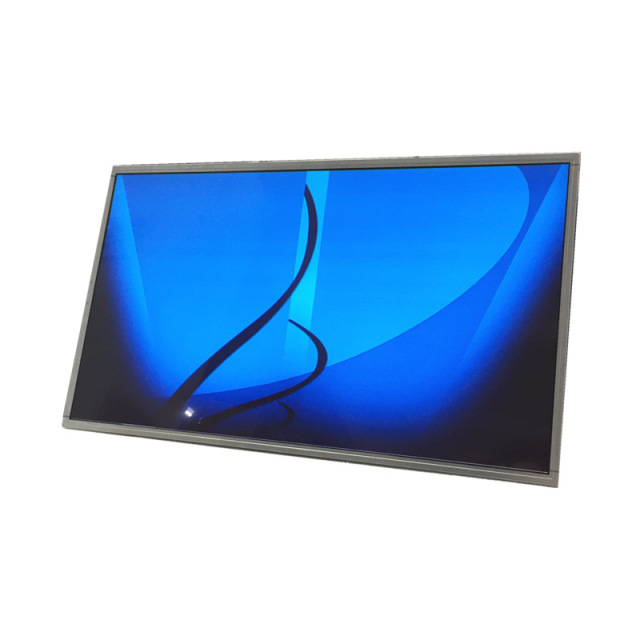

HV320FHB-N10 BOE 32 inch lcd display

Item No.: HV320FHB-N10
HV320FHB-N10 BOE 32 inch lcd display advertising player with 89/89/89/89 full viewing angle 250 nits use for industrial or commercial.
US$125.00
INQUIRY
Buy At Alibaba
Description Features Application General Specification

HV320FHB-N10 BOE 32 inch lcd display advertising player with 89/89/89/89 full viewing angle 250 nits use for industrial/commercial.

HV320FHB-N00 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 31.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this open cell can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.


Features:
LVDS Interface with 2 pixe/clock
High luminance and contrast ratio,low reflection and wide viewing angle
High-speed response
Low color shift image quality
8-bit color depth,display 16.7M colors
DE(Data Enable) only mode
ADS technology is applied for high display quality
ROHS compliance

Application:
Home Alone Multimedia TFT-LCD TV
Display Terminals for Control System
High Definition TV(FHD TV)
AV application Products

General Specification:

Panel Brand BOE
Panel Model HV320FHB-N10
Panel Size 31.5 inch
Panel Type a-Si TFT-LCD, CELL
Resolution 1920(RGB)×1080 , FHD
Pixel Format RGB Vertical Stripe
Display Area 698.4(W)×392.85(H) mm
Glass Depth 0.50+0.50 mm
Bezel Opening -
Outline Size 708.4(W)×405.4(H) ×1.36(D) mm
Surface Antiglare (Haze 1%)
Brightness 0 cd/m²
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode ADSDS, Normally Black, Transmissive
Best View on Symmetry
Response Time 8 (Typ.)(G to G)
Panel Weight 860g
Input Voltage 12.0V (Typ.)
Transmissivity 5.0% (Typ.)(with Polarizer)
Display Colors 16.7M
Lamp Type No B/L
Frequency 60Hz
Touch Screen Without
Application desktop monitor
Signal Interface LVDS (2 ch, 8-bit) , 51 pins , Connector
Environment Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C

Features:
LVDS Interface with 2 pixe/clock
High luminance and contrast ratio,low reflection and wide viewing angle
High-speed response
Low color shift image quality
8-bit color depth,display 16.7M colors
DE(Data Enable) only mode
ADS technology is applied for high display quality
ROHS compliance
Application
Home Alone Multimedia TFT-LCD TV
Display Terminals for Control System
High Definition TV(FHD TV)
AV application Products
General Specification:

Panel Brand BOE
Panel Model HV320FHB-N10
Panel Size 31.5 inch
Panel Type a-Si TFT-LCD, CELL
Resolution 1920(RGB)×1080 , FHD
Pixel Format RGB Vertical Stripe
Display Area 698.4(W)×392.85(H) mm
Glass Depth 0.50+0.50 mm
Bezel Opening -
Outline Size 708.4(W)×405.4(H) ×1.36(D) mm
Surface Antiglare (Haze 1%)
Brightness 0 cd/m²
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode ADSDS, Normally Black, Transmissive
Best View on Symmetry
Response Time 8 (Typ.)(G to G)
Panel Weight 860g
Input Voltage 12.0V (Typ.)
Transmissivity 5.0% (Typ.)(with Polarizer)
Display Colors 16.7M
Lamp Type No B/L
Frequency 60Hz
Touch Screen Without
Application desktop monitor
Signal Interface LVDS (2 ch, 8-bit) , 51 pins , Connector
Environment Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
