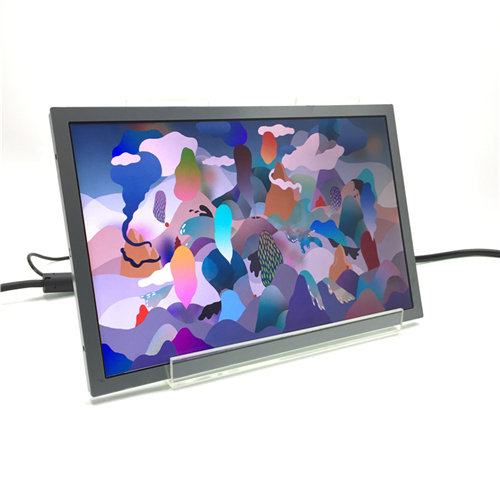

The G121ICE-L02 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, 6/8 bit, Matte , Digitizer applicable. Based on its features, we recommend that this model be applied to Industrial etc.
If you want to embed G121ICE-L02 LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.
| Brand | Innolux |
| Model | G121ICE-L02 |
| Diagonal Size | 12.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×800 [WXGA] 124PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 261.12(H)×163.2(V) mm |
| Outline Dim. | 278(H)×184(V) ×11(D) mm |
| Bezel Area | 264.12(H)×166.2(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 12/8 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down |
| Operating Mode | AAS, Normally Black, Transmissive |
| Support Color | 262K/16.7M 72% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Weight | 470/490g (Typ./Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
