Original Innolux Panel | Supplied by XIANHENG TECH

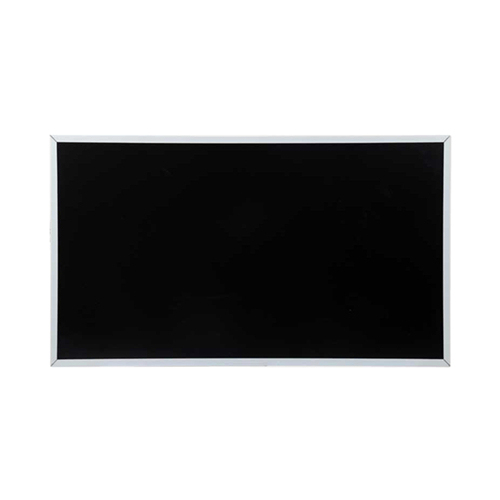

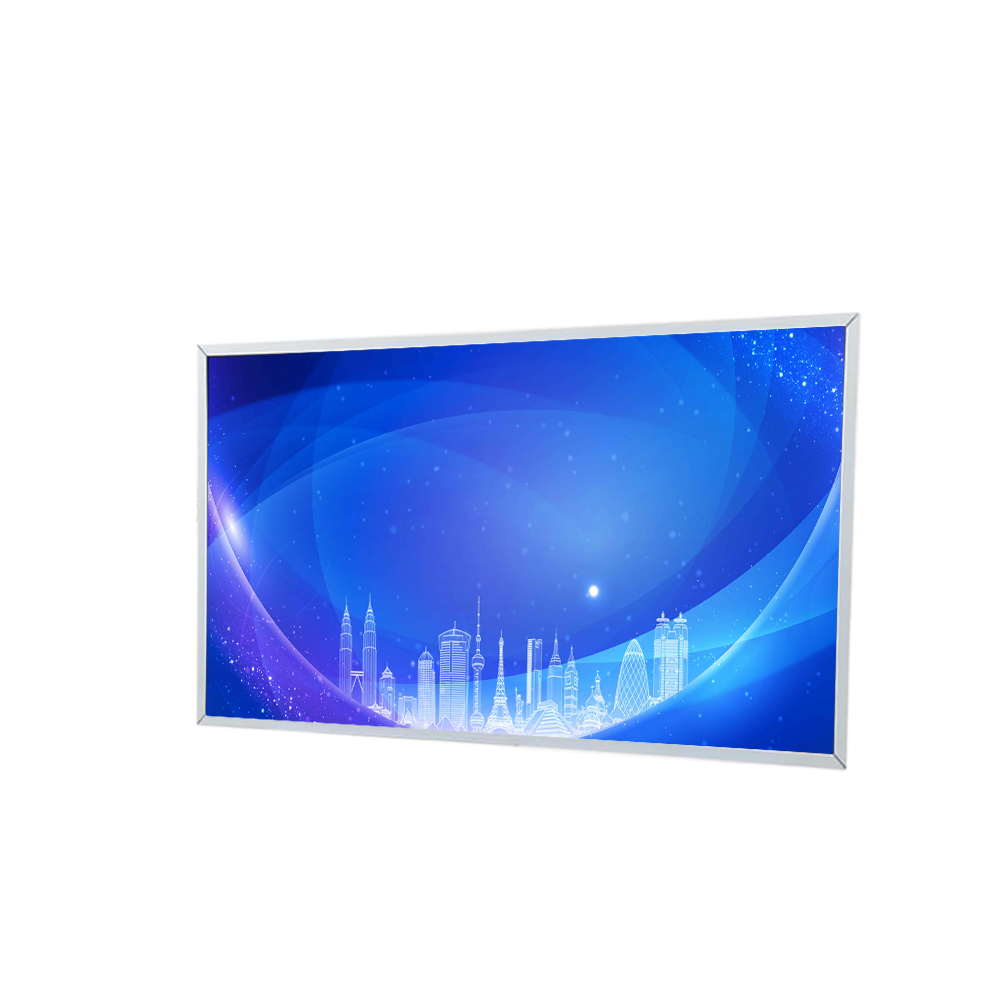

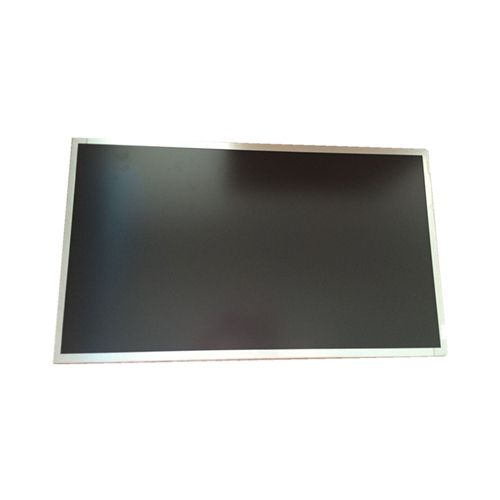

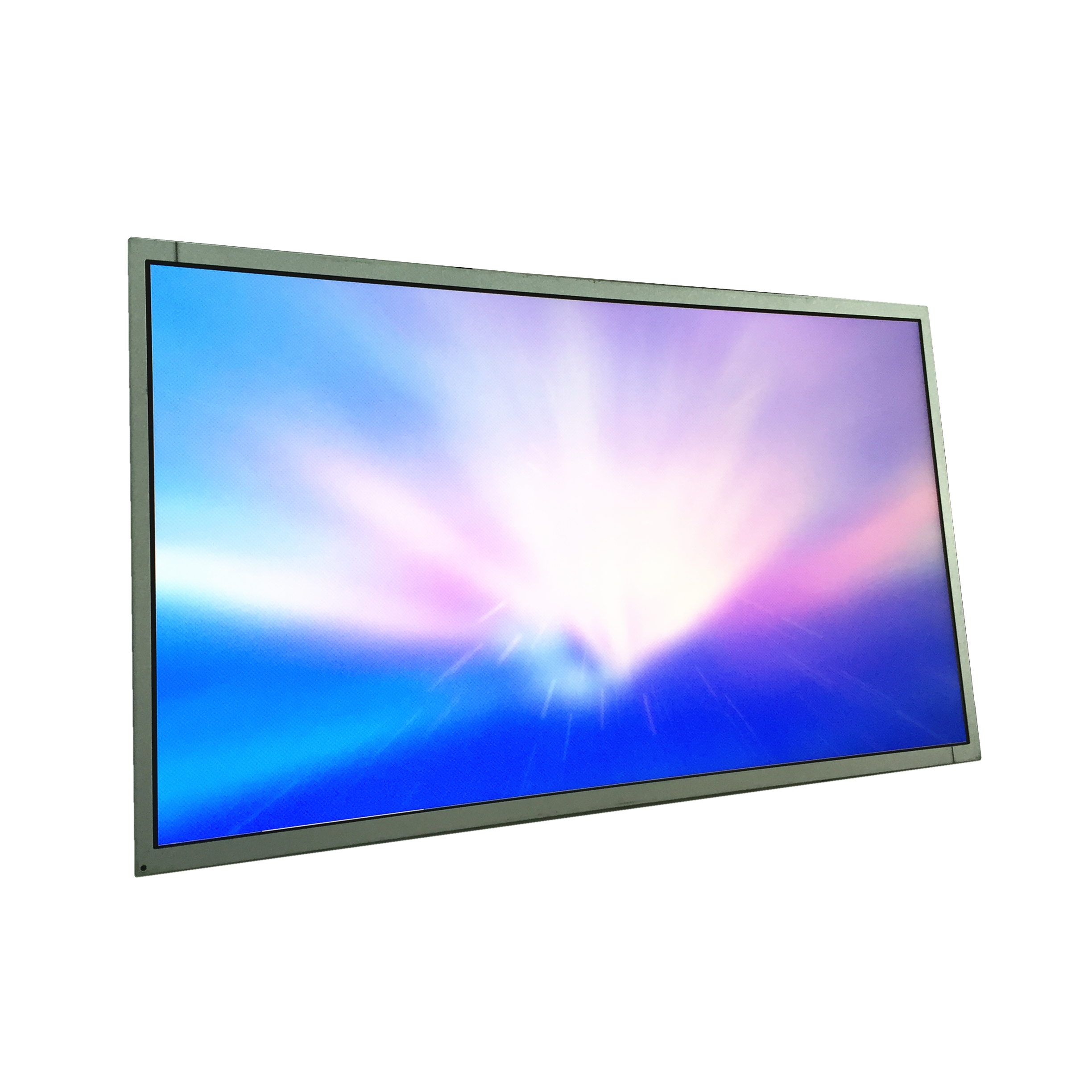

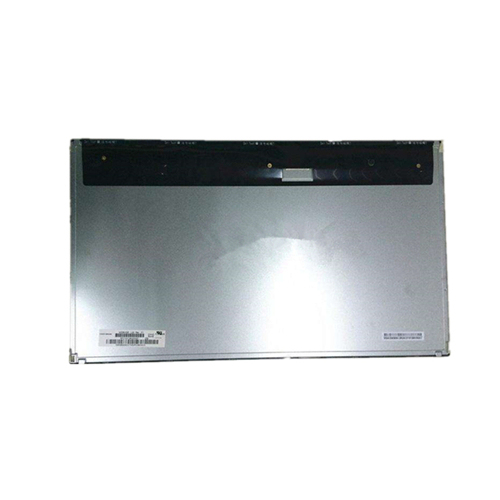

The Innolux M236HJJ-L31 is a 23.6-inch Full HD (1920×1080) a-Si TFT-LCD module designed for desktop monitors and commercial display applications. With Super MVA technology, wide viewing angles, high contrast ratio, and a durable WLED backlight, this panel delivers excellent image performance and reliability for long-term use.
This LCD panel is widely used in:
| Brand | INNOLUX |
| Model | M236HJJ-L31 |
| Type | a-Si TFT-LCD , LCM |
| Diagonal Size | 23.6 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] |
| Active Area | 521.28(H)×293.22(V) mm |
| Bezel Area | 525.22(H)×297.22(V) mm |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 544.8(H)×320.5(V) ×11.5(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Support Color | 16.7M 72% (CIE1931) |
| Weight | 2.31±0.11Kgs |
| Frame Rate | 60Hz |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Response Time | 20 (Typ.)(G to G) |
| Operating Mode | Super MVA, Normally Black, Transmissive |
| Light Source | WLED [4 strings] , 40K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) , Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
XIANHENG TECH provides original Innolux LCD panels with competitive prices, large stock, and fast delivery. Contact us today for the latest quotation and technical support.
