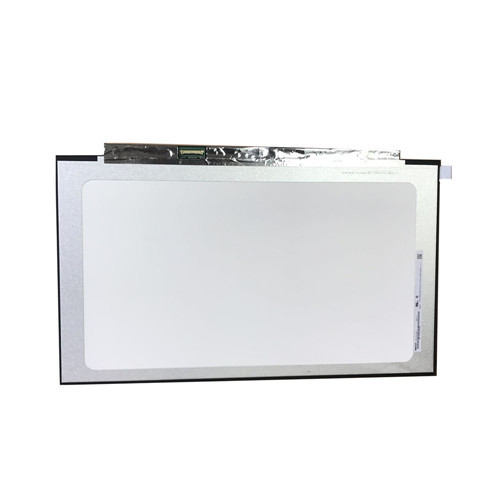

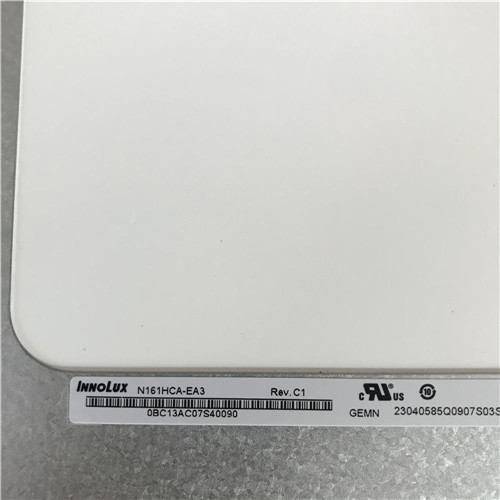

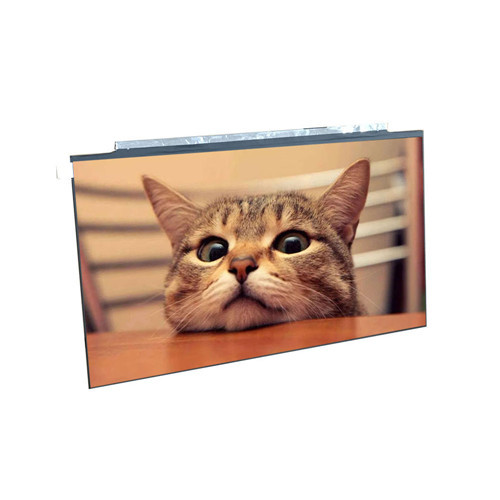

The N161HCA-EA3 (Product Code: CMN1604) is a 16.1 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It's general features are summarized in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.2. Based on its features, we recommend that this model be applied to Laptop etc. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).
If you want to embed N161HCA-EA3 LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.
| Manufacturer | Innolux |
| Model Name | N161HCA-EA3 (CMN1604) |
| Screen Size | 16.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Pixel Number | 1920(RGB)×1080 (FHD) 137PPI |
| Active Area(mm) | 355.39 × 199.91 (H×V) |
| Bezel Area(mm) | - |
| Outline(mm) | 361.9 × 222.16 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Good View at | Symmetry |
| Color Depth | 16.7M 100% sRGB |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 60Hz |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | AAS, Normally Black, Transmissive |
| Response | 11/9 (Typ.)(Tr/Td) ms |
| Backlight | WLED , 15K hours , With LED Driver |
| Used for | Laptop |
| Touchscreen | Without |

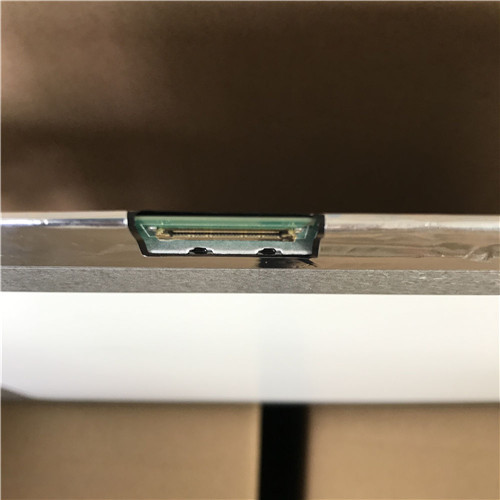

| Signal Type | eDP (2 Lanes) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
